Your plat of survey is the one document that tells the real story of your land. Yet most property owners stare at it and feel lost. The lines, numbers, and tiny symbols can look like a foreign language. Here is the good news. Once you know what to look for, this document stops being confusing. It becomes one of the most useful papers you own.
This guide breaks the plat into plain steps. No jargon. No filler. Just what you need to read your survey with confidence.
1. Start with the Title Block: What the First Section Tells You
The title block sits in a corner of the plat, usually the bottom right. Start here every time.
What it shows you
- Property location. Look for the street address and the Tax Map Key (TMK) number. The TMK is Hawaii’s way of identifying every parcel by zone, section, plat, and lot.
- Survey date. Land changes. Fences move. Trees grow. A survey from ten years ago may not match what stands on the ground today.
- Client name. This tells you who the survey was prepared for, which matters if you bought the property from someone else.
Why the purpose matters
Plats get made for different reasons. Some are for a sale. Others are for a building permit or a boundary dispute. The purpose shapes what details got included. A survey made just to close a sale may skip details a builder would need.
Who prepared it
Check for the surveyor’s name, license number, and stamp. This confirms the document is official and not a rough sketch. If the stamp or signature is missing, ask your real estate agent or the seller for the certified copy.

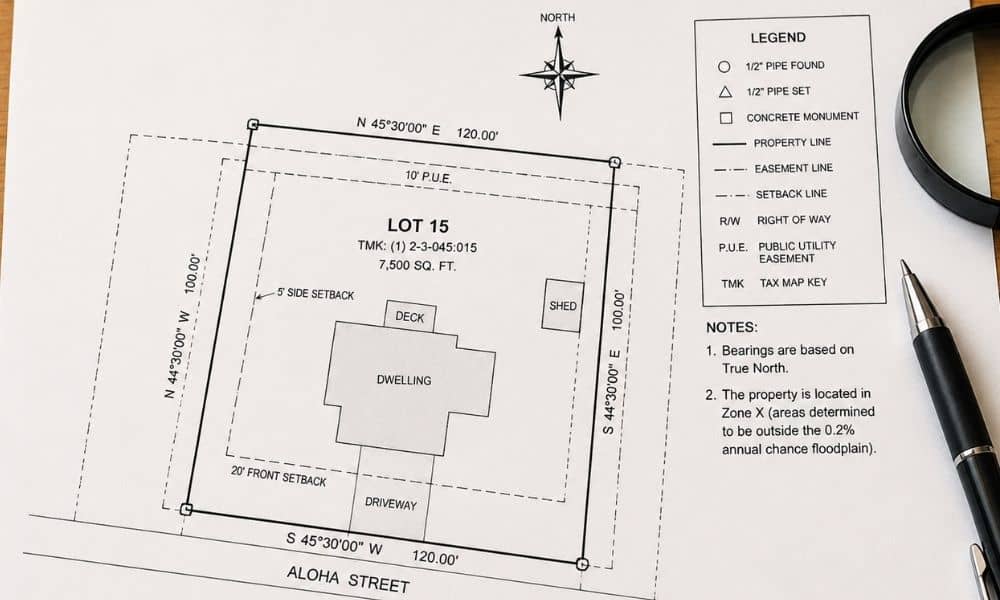

2. Decoding the Symbols, Abbreviations, and Line Styles
Plats use shorthand. Once you learn a handful of marks, the page makes sense fast.
Common symbols on plats
- A small circle or triangle usually marks a survey monument, the physical marker buried at a property corner.
- “TMK” labels the tax map key.
- “R/W” stands for right of way.
- “P.U.E.” means public utility easement.
What line types tell you
- Solid lines usually trace the property boundary.
- Dashed lines often show easements, setbacks, or features that exist but are not boundary lines.
- A different dash pattern can mark an old or removed boundary.
Use the legend
Every plat should include a legend or key. It lists what each symbol and line style means on that specific drawing. Read it first before you try to read the rest of the page. Surveyors do not always use identical symbols, so the legend keeps you accurate.
Not every mark is a boundary
This trips people up the most. A dashed line near a boundary might just be a setback requirement, not where your land ends. If a line looks unclear, check the legend before assuming it marks your property edge.
3. Understanding Dimensions, Bearings, and Scale Without Needing an Engineering Degree
You do not need a surveying license to follow the numbers. You just need to know what they represent.
Distances and bearings work as a pair
Each boundary line has two pieces of information: a distance, usually in feet, and a bearing, which is a compass direction written like N45°30’E. Read them together. The distance tells you how long the line runs. The bearing tells you which way it points.
Scale changes between printed and digital copies
A plat drawn at one scale on paper may display differently on a screen or a smaller printout. Never measure a printed plat with a ruler and assume it matches real-world feet unless the scale bar confirms it. Always check the scale note printed on the plat itself.
Avoid these common mistakes
- Do not eyeball distances. Use the labeled numbers, not your sense of the drawing’s size.
- Do not assume north is always at the top. Check the north arrow.
- Do not skip the scale bar when comparing a digital PDF to a printed copy.
4. Spotting Important Property Details That Could Affect Future Plans
This section often gets overlooked, but it can save you real money later.
Easements, setbacks, and access areas
These show where you cannot build, even on land you legally own. A utility easement might run straight through your backyard. A setback line might sit closer to the road than you expected.
Existing improvements
Look for outlines of structures already on the property: the house, a garage, a shed, a pool, or a driveway. These help confirm what is built and where, compared to the boundary.
Notes that affect future projects
Some plats include small printed notes about flood zones, shoreline setback rules, or prior variances. In Hawaii, shoreline and flood-related notes matter a lot for permitting. A missed note here can delay a renovation or addition.
When to call your surveyor
If a note references a document you do not have, or a boundary line looks inconsistent with a fence or wall on the ground, ask your surveyor before you start any project. A short phone call now avoids a costly redesign later.
5. Using Your Plat of Survey Beyond Closing Day
Most people file the plat away after closing and forget it exists. Do not do that.
Share it with your project team
Architects, contractors, and designers all work faster and more accurately when they start from your actual plat instead of guessing your lot lines.
Keep organized copies
Store a digital scan and a printed original. Label the file clearly with the address and survey date. You will likely need it again for permits, refinancing, or a future sale.
Know when you need an updated plat
If you add a structure, change the fence line, or the property changes significantly, an updated survey may be worth getting. Older plats do not always reflect current conditions.
The payoff
Once you can read your plat, every future property decision gets easier. Permits move faster. Contractors ask fewer questions. You avoid boundary surprises before they become expensive ones.
If anything on your plat still looks unclear, reach out to our team. We are happy to walk through your specific survey with you.
Frequently Asked Questions
1. What is a plat of survey used for?
It documents your property’s exact boundaries, size, and key features. Lenders, buyers, and permitting offices often require it before approving loans, sales, or construction.
2. Is a plat of survey the same as a property deed?
No. A deed proves legal ownership. A plat of survey shows the physical boundaries and layout of the land itself. You usually need both documents, not one in place of the other.
3. Can I determine where I can build by reading my plat of survey?
You can get a strong idea by checking setback lines and easements shown on the plat. For final confirmation, especially near shorelines, always check with your county permitting office.
4. What do easements on a plat of survey mean for property owners?
An easement gives someone else, often a utility company, legal access to part of your land for a specific purpose. You still own that land, but you cannot build over it freely.
5. Why do printed and digital plats sometimes appear different in size?
Printers and screens can scale a document differently. Always trust the labeled distances and the scale bar on the plat, not the visual size of the page.
